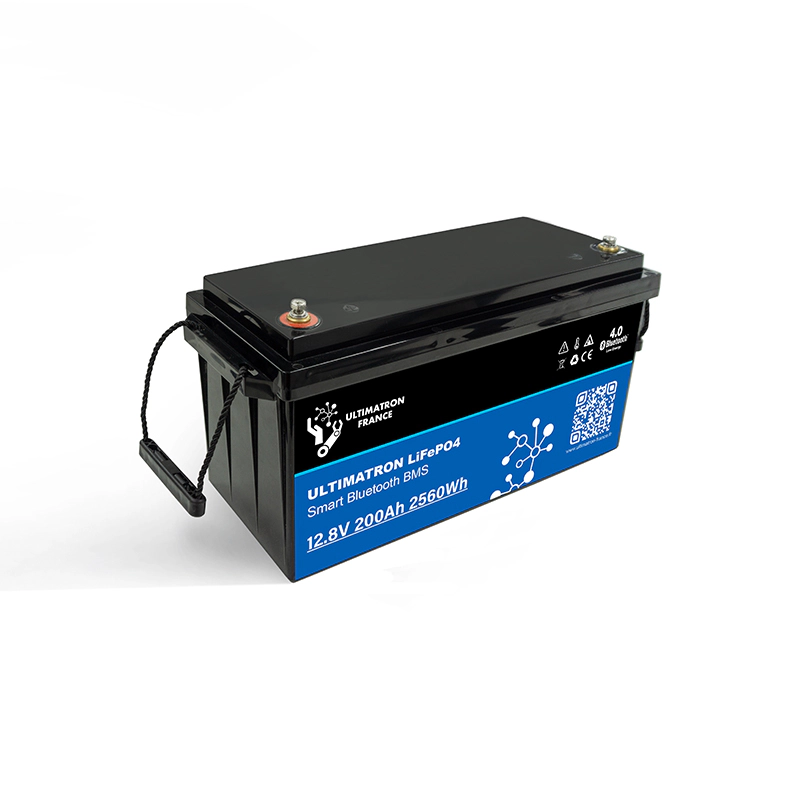

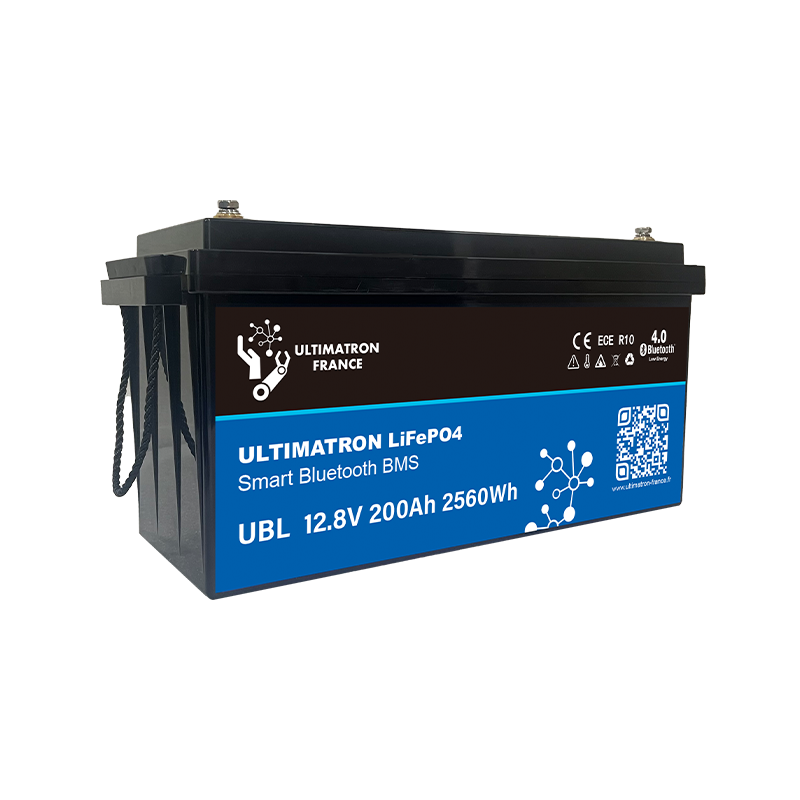

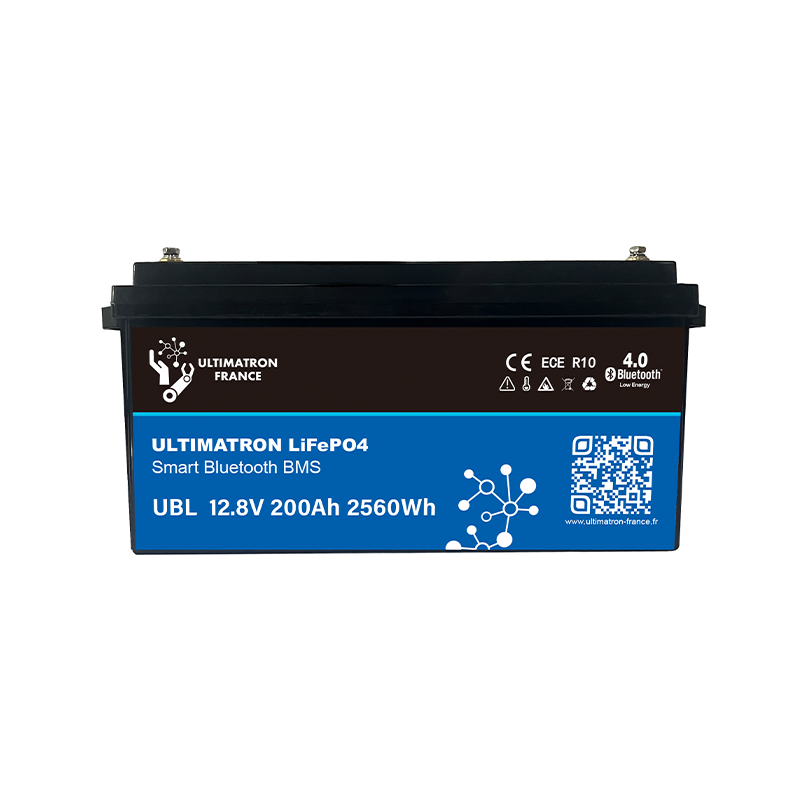

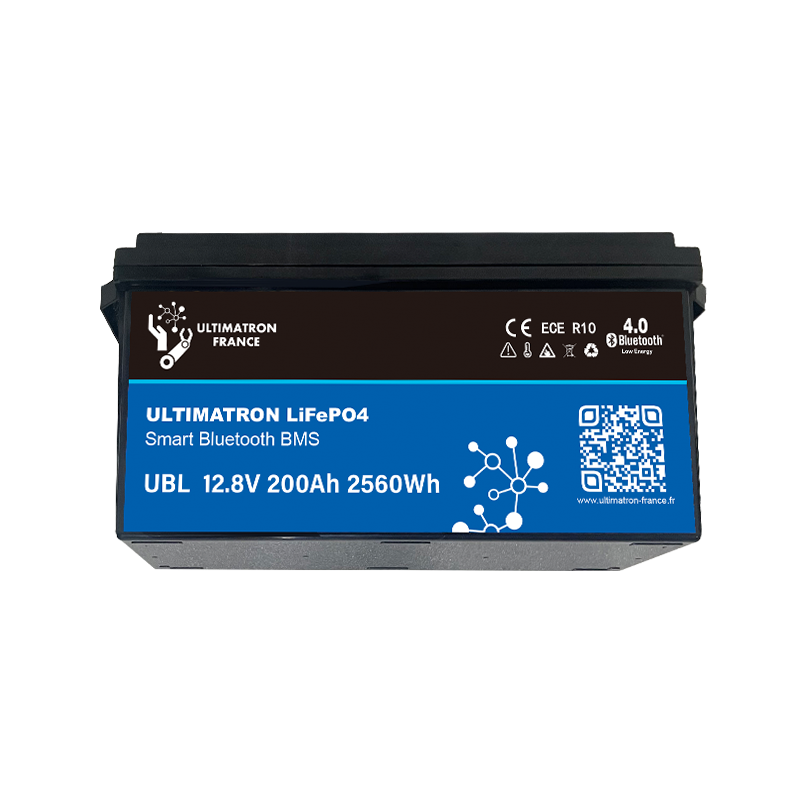

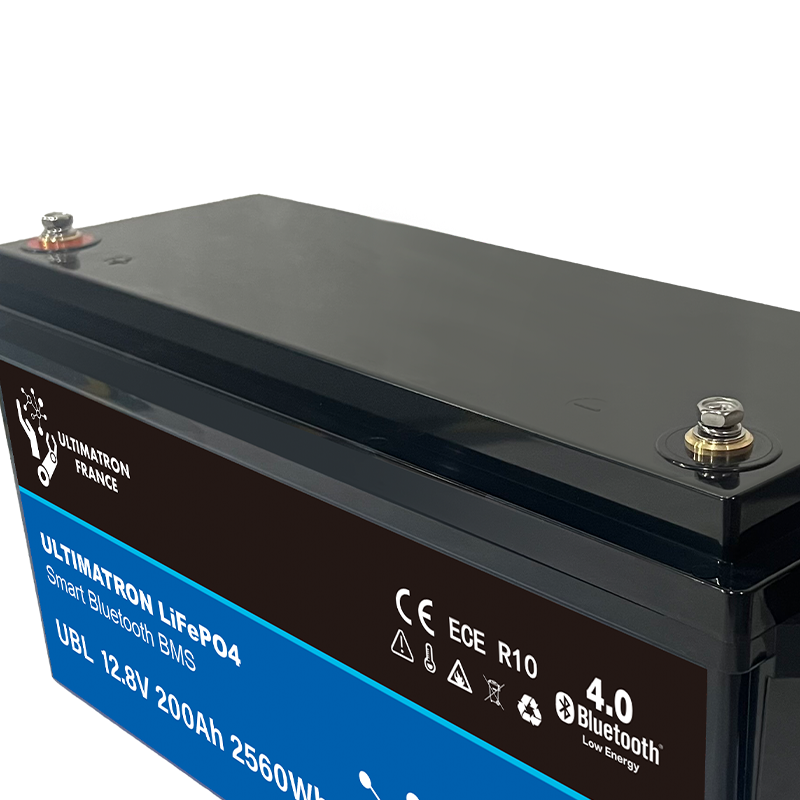

Ultimatron Lithium Battery 12.8V 200Ah PRO 2560Wh LiFePO4 Smart BMS With Bluetooth
– 5 year warranty
– Presmatic class A battery cell
– Application available on Apple Store and Google Play
– 200Ah power in a 150Ah case
– Dimensions (L × W × H) mm: 502*186*243 mm, same as UBL-12-150
Nominal voltage 12.8 V
Nominal capacity 200 Ah
Capacity @ 20A 600 min
Energy 2560 Wh
Resistance ≤15 mΩ @ 50% SOC
Self-discharge <3% / Month
Number of cycles >6000@80% DoD
Recommended charging current 60 A
Maximum charging current 100 A
Recommended charging voltage 14.6 V
Charge cut-off voltage 14.6 V (2000 ms)
Reconnection voltage ≤13.8 V
Equilibrium voltage >12.8 V
Maximum continuous discharge current 150 A
Peak discharge cut-off current 450 A (200~500ms)
Discharge cut-off voltage 10 V (2000 ms)
Reconnection voltage >11.2 V
Short circuit protection 1000-2000A ±400A
（200~800μs）
Discharge temperature -20 ~ 75 ºC
Charging temperature 0 ~ 50 ºC
Storage temperature -5 ~ 35 ºC
Dimensions L502* W186 * H243mm
Weight 19.05 kg
Connection screw M8
Torque terminals 80 ~ 100 in-lbs (9 ~ 11 Nm)
Material Box ABS
International Protection Code IP65
Bluetooth Bluetooth 4.0 with
smartphone app
Certifications CE
UN38.3
UL1642 & IEC62133
Shipping Classification UN 3480, CLASS 9
