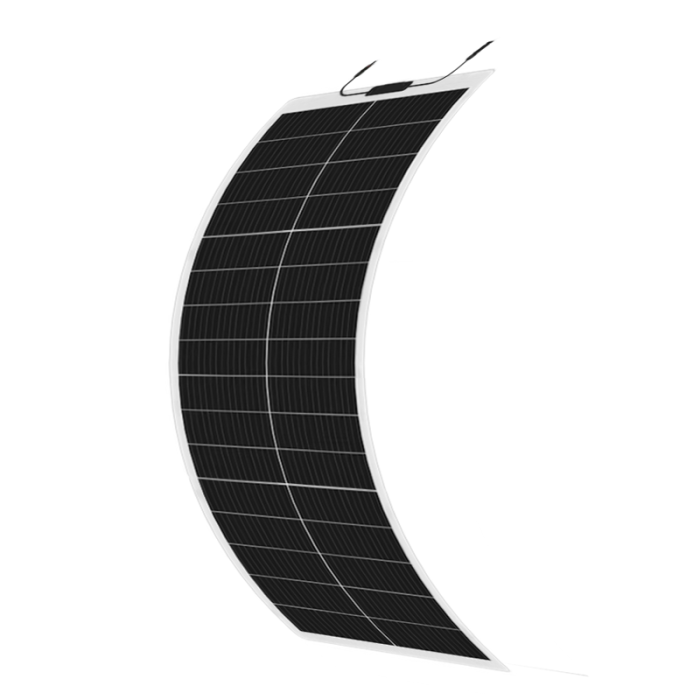

100W CPC semi-flexible solar panel
175,00€ Original price was: 175,00€.130,00€Η τρέχουσα τιμή είναι: 130,00€.
Nominal Power 100W
Cell Efficiency ≥22.5%
Maximum Power Current 5.38A
Maximum Power Voltage 18.69V
Open-circuit Voltage 21.89V
Short-circuit Current 5.72A
Maximum System Voltage 200V
Output Tolerance 0~+3%
Cable (MC4) 900mm / 2.5mm²
Module Structure CPC / EVA / Backsheet

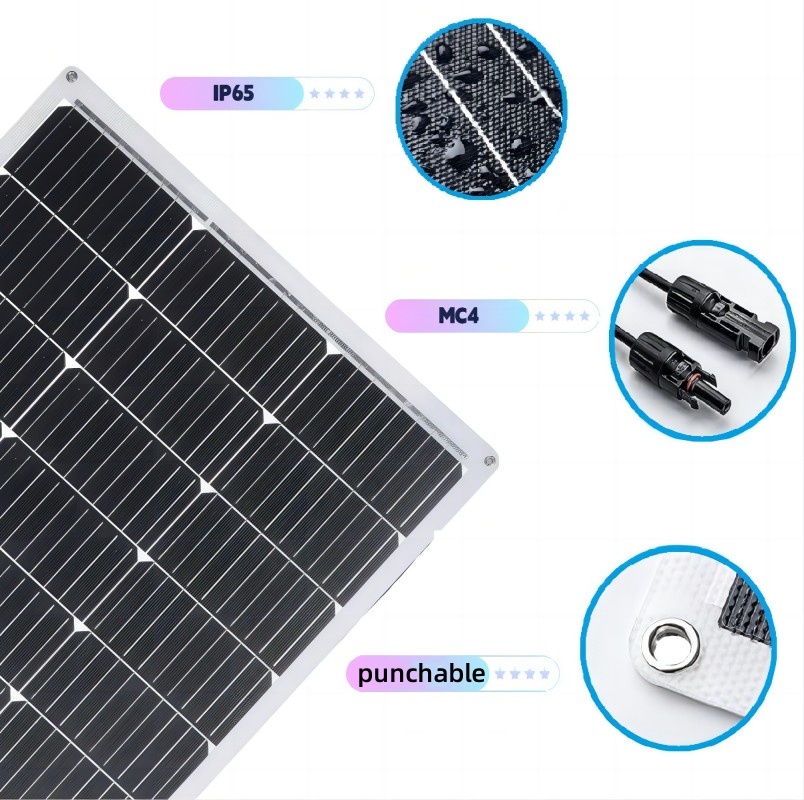

Junction box rating ≥IP67
Cell 210*70–16*2
Working Temperature -20℃~+65℃
Module Dimensions 1230*470*2mm
Weight(Net /Gross) 2.3/3.2kg
Διαθέσιμο κατόπιν παραγγελίας
8
βλέπουν αυτό το προϊόν τώρα!
Κωδικός προϊόντος:
SZ-100-MC
Κατηγορία: SEMI FLEXIBLE
Περιγραφή
Advantages:

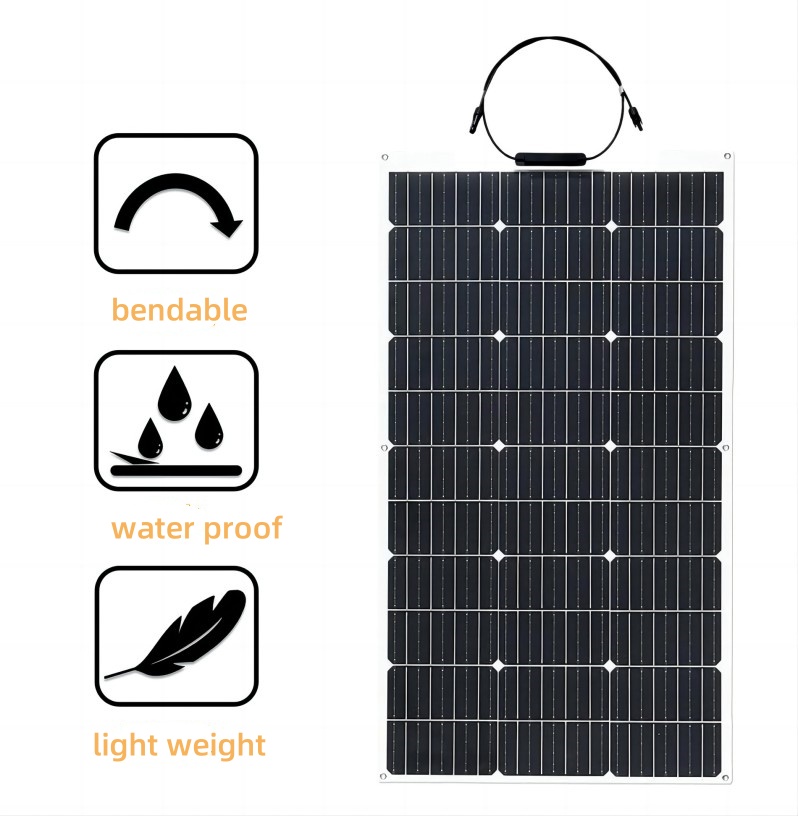

- Lightweight solar modules have better power generation efficiency and longer service life than traditional flexible modules.
- The CPC material used on the surface has good weather resistance and high light transmittance, and its performance is better than that of ETFE material.
- Composite material integration, compared with traditional flexible panels, has better protection for solar cells. Sturdy materials and stable workmanship make it possible to walk on the panels.
- It is so lightweight that it is easy to carry and install. It is suitable for a variety of application scenarios.
Επιπλέον πληροφορίες
Βάρος | 1,1 κ. |
---|---|
Διαστάσεις | 668 × 834 mm |
